AP-510 Cassette Arm Awning

Arm awnings

Comfort from sunrise to after sunset.

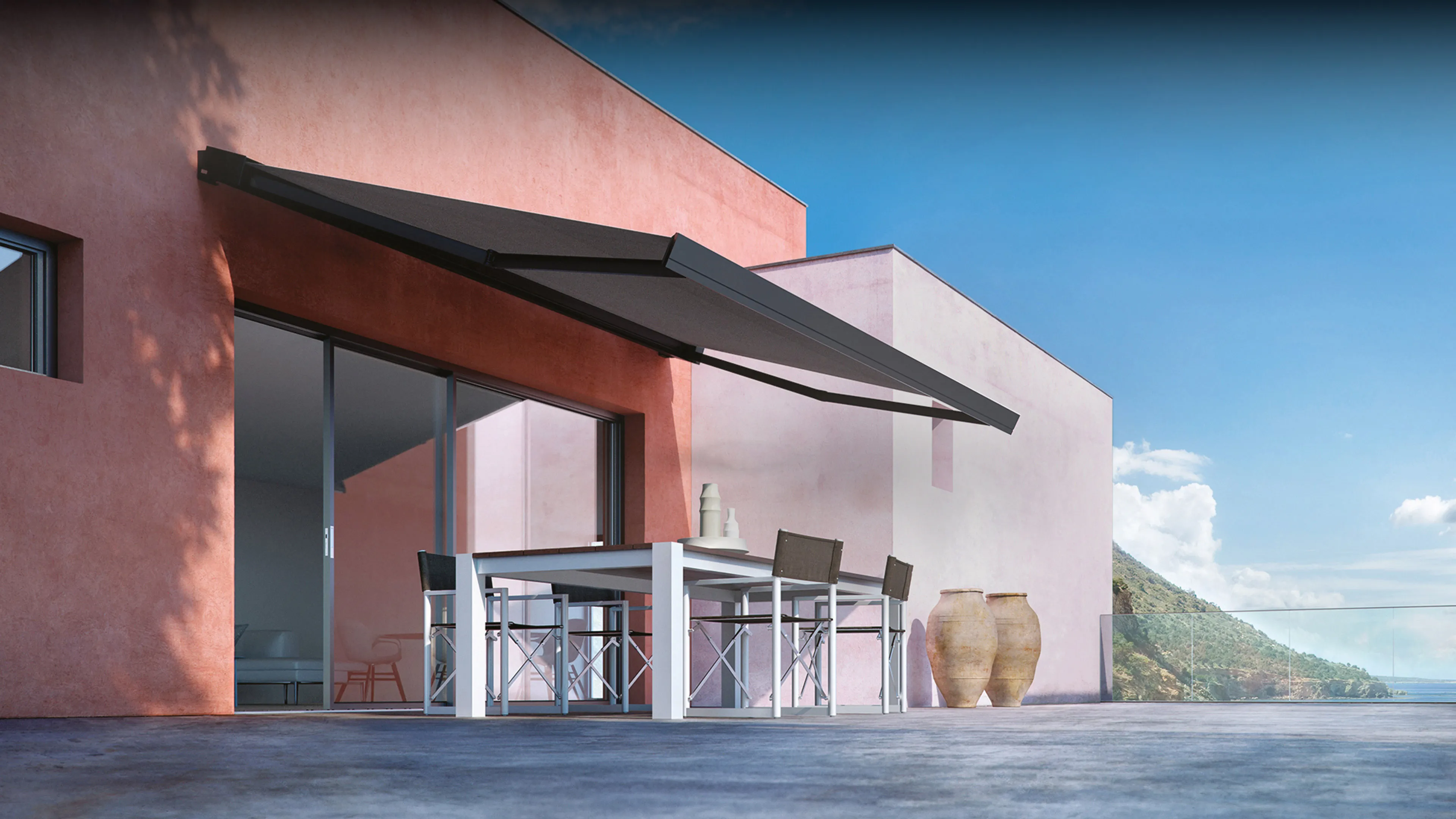

The flagship of the AlfaProtech arm-awning line. Folding arms, motor and rolled canvas disappear into a single rational aluminium cassette that protects the mechanism and reads as a refined architectural detail. High-performance fabrics shade the terrace through the day, while the dimmable LED line integrated in the box and in the front bar keeps the space alive after dusk. Wall or ceiling mounted, with a fixed pitch selectable from 10° to 60°.

Technical details

Every dimension, movement and finish is engineered around your project: section sizes, clearances and load behaviour are defined together with your installer to suit the exact conditions of your site.

Features

Everything hides away — Closed, the cassette fully encloses canvas, arms and motor — the awning stays protected and the facade stays clean.
Light after sunset — The dimmable LED line extends terrace evenings with a soft, customisable atmosphere.
Replaceable canvas — The fabric cover can be removed and replaced — refresh colours seasonally without touching the structure.

Dimensions

Awning type:

Full-cassette folding-arm awning

Frame material:

Powder-coated aluminium alloy, 2.0 mm wall

Mounting:

Wall or ceiling

Pitch adjustment:

Fixed pitch, selectable 10–60°

Size range:

Width 175–595 cm × projection 150–350 cm, tailor-made

Operation:

Motorised — remote control, app and home automation

LED lighting:

Dimmable LED line in cassette and front bar

Fabric options:

PU-coated polyester or solution-dyed acrylic — filtering, blockout or waterproof

Certification:

CE certified

Complete your pergola

Lighting, side closures and automation extend the seasons of your outdoor space — accessories designed to work as one system with the structure above them.

Lighting

Dimmable LED solutions integrated into the structure, so the space stays in use long after sunset.

Side closures

Vertical screens and glazing that shelter the perimeter without losing the open-air feeling.

Sensors

Wind, rain and sun sensors move the cover on their own, even when nobody is home.

Automation

App and remote control for adjusting light, ventilation and shade from wherever you are.

Documentation

Catalogues, technical sheets and maintenance manuals for every collection, ready to download or request from our team.

Compare the models

Unsure which solution fits your space? Put the models side by side and read the technical characteristics at a glance.

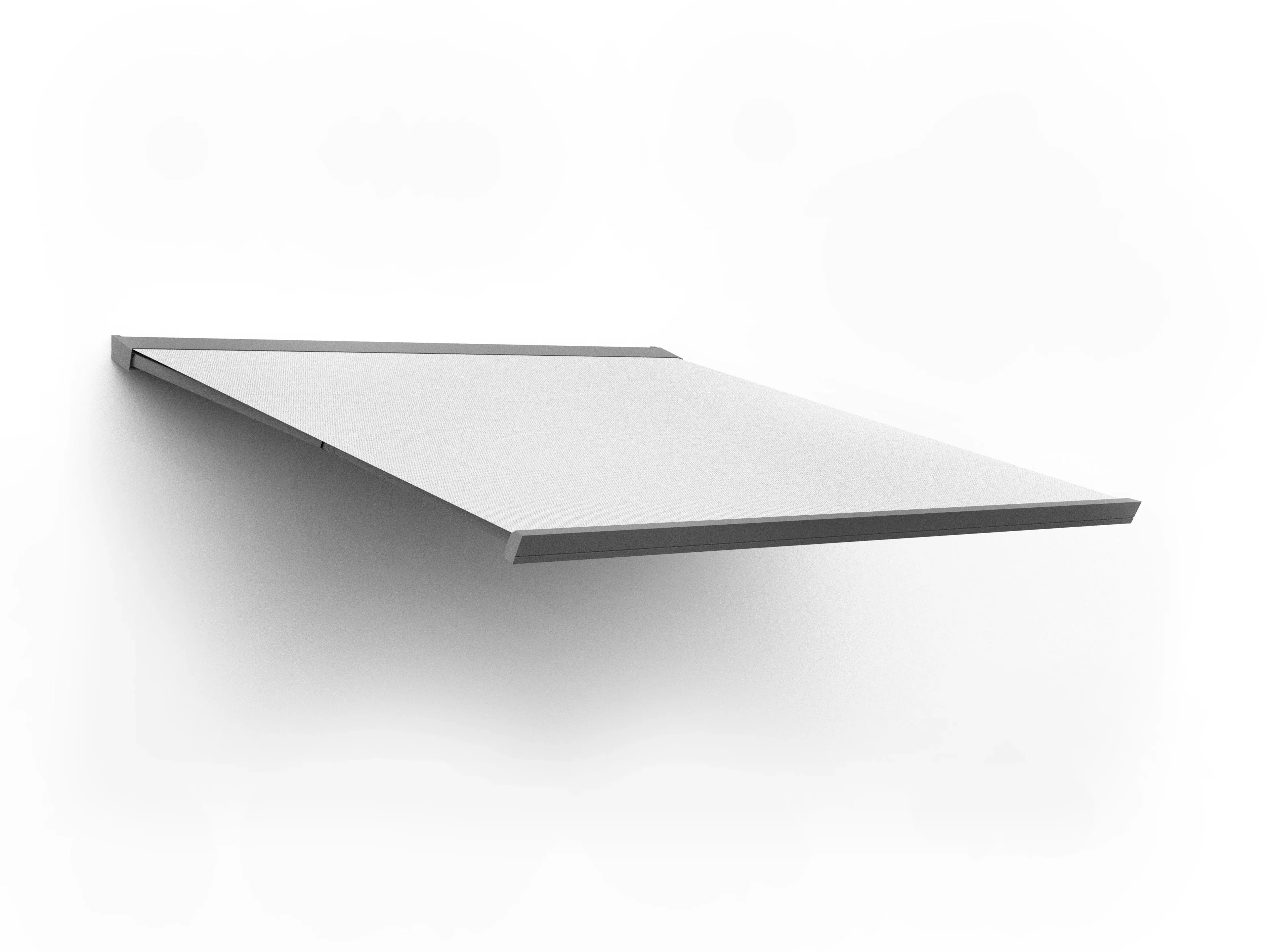

AP-510 Cassette Arm Awning

All-in-one cassette

Advantages

Thermal comfort

Adjustable shading keeps light, ventilation and temperature under control using nothing but sun and wind.

Tailor-made design

Dimensions, configurations, colours and options are defined project by project — no two installations are alike.

Built to last

Powder-coated aluminium structures engineered for years outdoors with minimal maintenance.

Sustainable living

Passive climate control lowers energy use and extends the living season of your outdoor space.

Model	Category	Max width	Control
AP-510 Cassette Arm Awning	Arm awnings	Width 175–595 cm × projection 150–350 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-530 Arm Awning with Motorised Valance	Arm awnings	Width 200–700 cm × projection 150–400 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-550 Essential Arm Awning	Arm awnings	Width 223–590 cm × projection 140–340 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-610 Recessed Vertical Awning	Vertical awnings	Width up to 500 cm × drop up to 350 cm (per fabric)	Motorised — remote control, app and home automation	View
AP-630 Zip Vertical Awning	Vertical awnings	Width 61–500 cm × drop 125–350 cm (per fabric)	Manual, motorised or solar motor — no wiring needed	View
AP-650 Cable-Guide Vertical Awning	Vertical awnings	Width 71–450 cm × drop 125–450 cm (per fabric)	Motorised — remote control or app; solar motor option	View

Customization

Your AP-510 Cassette Arm Awning, made your way

Light customization

Dimensions, fabrics, colours and finishes adapted on standard models for a fast project fit.

Built from your drawings

Send your drawings, sketches or technical requirements and we engineer the product to them.

Built from your sample

Provide a physical sample: we replicate its structure, finish and performance.

Made to your requirements

Fully bespoke production built to your specifications, from one-off units to series.
