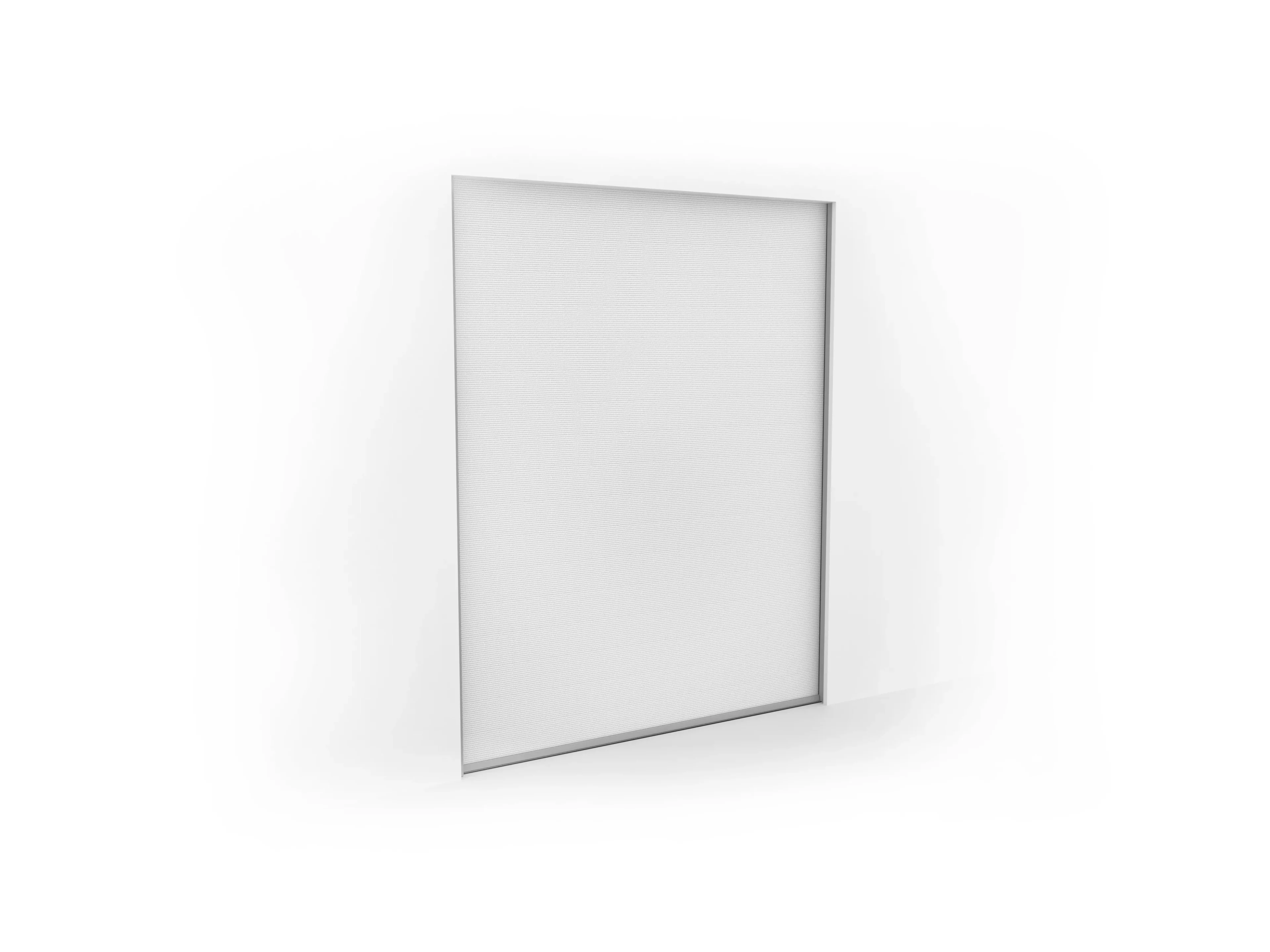

AP-610 Recessed Vertical Awning

Vertical awnings

Total privacy, hidden in the wall.

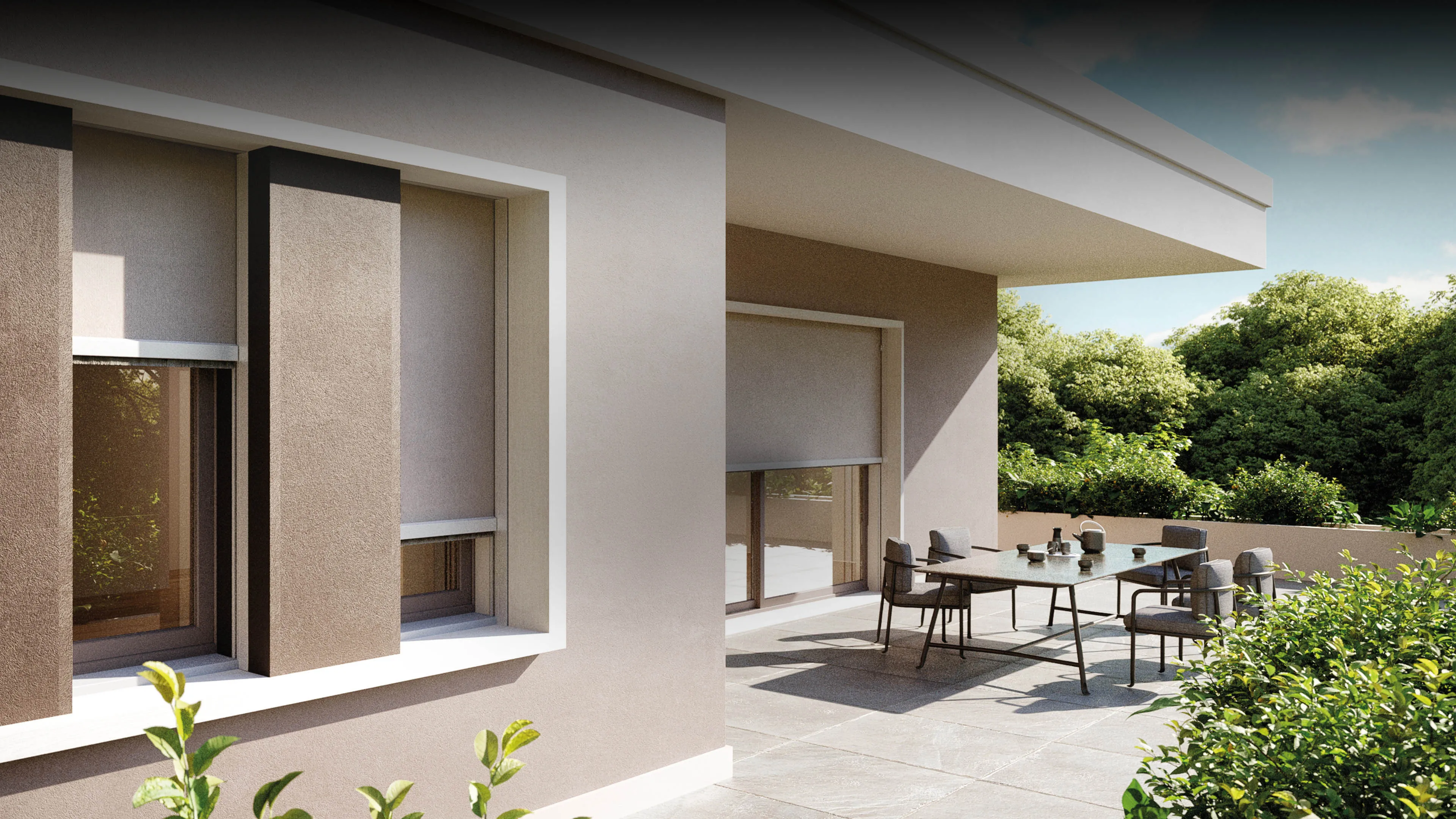

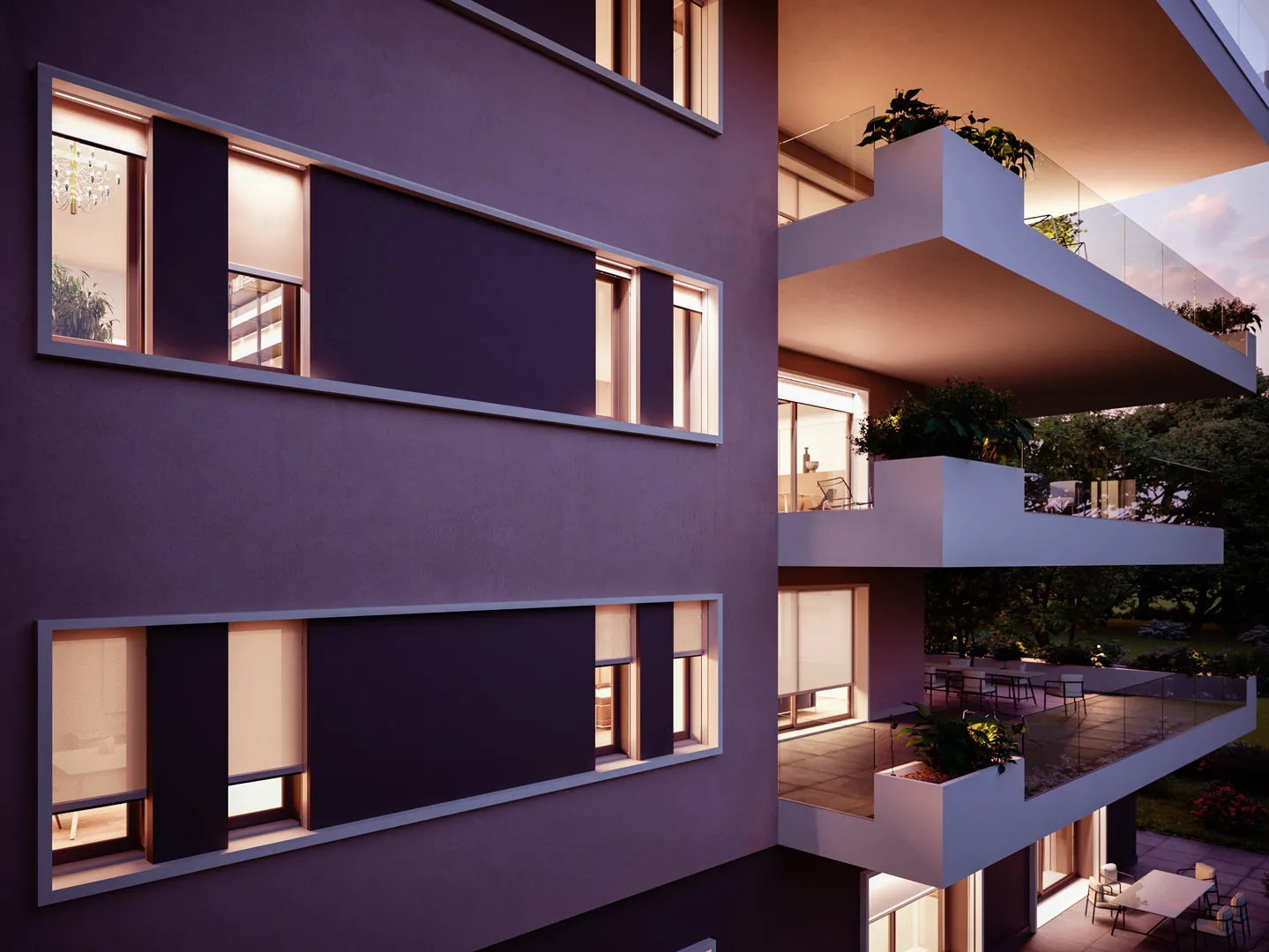

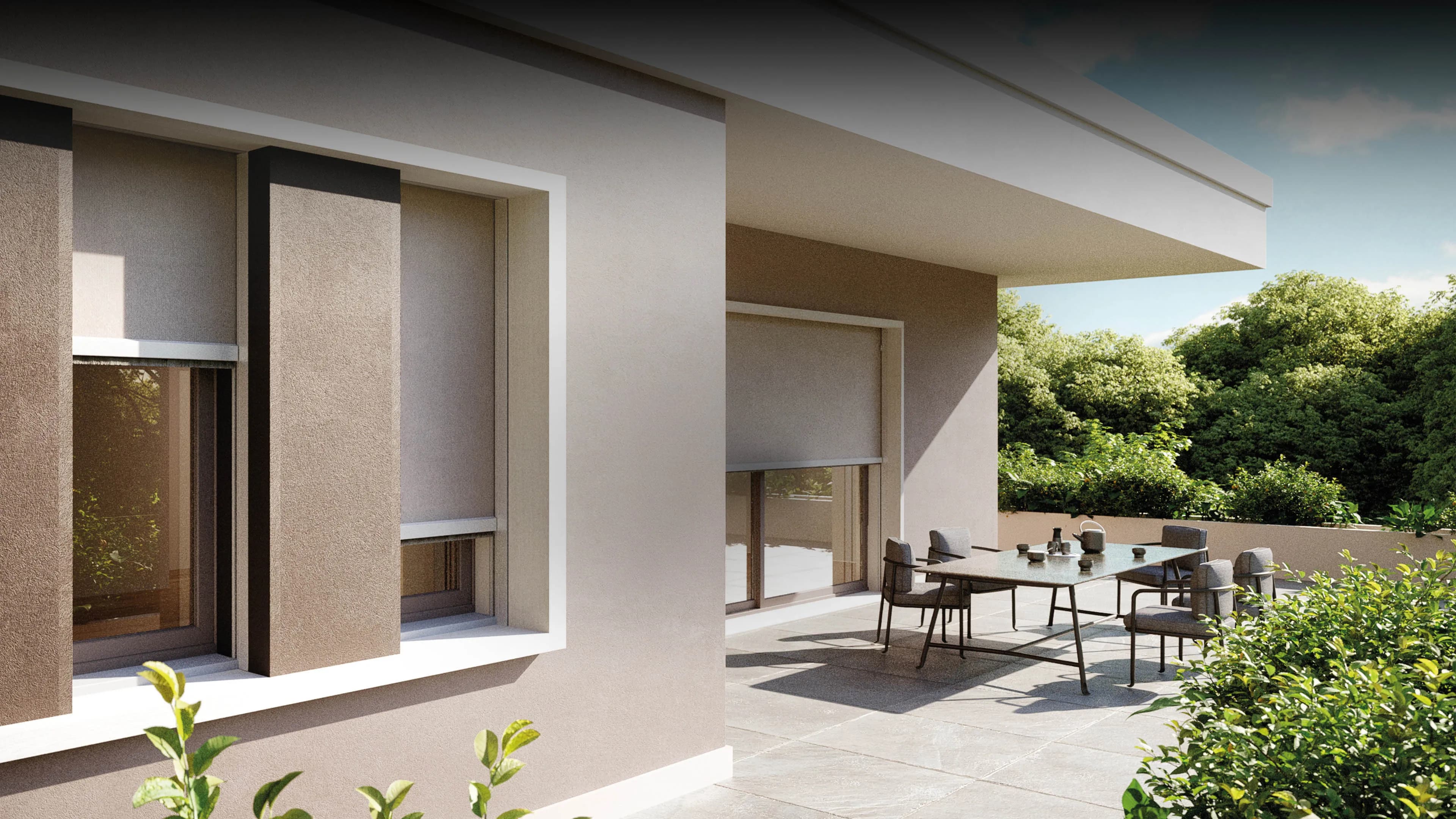

Designed to be built in: the AlfaProtech AP-610 rationalises box, zip rails and rolled canvas inside the wall during construction or renovation, leaving only a pure, essential line on the facade. The canvas slides on side zip rails with even tension in any position, and the LED line on the outer profile improves indoor privacy after dark.

Technical details

Every dimension, movement and finish is engineered around your project: section sizes, clearances and load behaviour are defined together with your installer to suit the exact conditions of your site.

Features

Invisible until needed — Box, rails and canvas live inside the wall reveal — the awning simply disappears into the architecture.
Even tension, any position — The zip-guided canvas keeps homogeneous tension at every opening degree — no sagging, no flapping.
Cooler rooms, lower glare — Technical fabrics shield glazed surfaces from heat and sunlight, keeping indoor temperatures comfortable.

Dimensions

Awning type:

Vertical recessed awning

Frame material:

Powder-coated aluminium alloy, 2.0 mm wall

Cassette options:

S90 / S98 / S114 — from 9 × 12.5 to 11.4 × 16.7 cm

Guide system:

Side zip rails

Mounting:

Recessed in the wall or window frame

Size range:

Width up to 500 cm × drop up to 350 cm (per fabric)

Operation:

Motorised — remote control, app and home automation

LED lighting:

LED line on the outer profile (from 120 cm width)

Fabric options:

Technical filtering (up to 95% UV shield), blockout or waterproof

Certification:

CE certified

Complete your pergola

Lighting, side closures and automation extend the seasons of your outdoor space — accessories designed to work as one system with the structure above them.

Lighting

Dimmable LED solutions integrated into the structure, so the space stays in use long after sunset.

Side closures

Vertical screens and glazing that shelter the perimeter without losing the open-air feeling.

Sensors

Wind, rain and sun sensors move the cover on their own, even when nobody is home.

Automation

App and remote control for adjusting light, ventilation and shade from wherever you are.

Documentation

Catalogues, technical sheets and maintenance manuals for every collection, ready to download or request from our team.

Compare the models

Unsure which solution fits your space? Put the models side by side and read the technical characteristics at a glance.

AP-610 Recessed Vertical Awning

Recessed mounting

Advantages

Thermal comfort

Adjustable shading keeps light, ventilation and temperature under control using nothing but sun and wind.

Tailor-made design

Dimensions, configurations, colours and options are defined project by project — no two installations are alike.

Built to last

Powder-coated aluminium structures engineered for years outdoors with minimal maintenance.

Sustainable living

Passive climate control lowers energy use and extends the living season of your outdoor space.

Model	Category	Max width	Control
AP-510 Cassette Arm Awning	Arm awnings	Width 175–595 cm × projection 150–350 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-530 Arm Awning with Motorised Valance	Arm awnings	Width 200–700 cm × projection 150–400 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-550 Essential Arm Awning	Arm awnings	Width 223–590 cm × projection 140–340 cm, tailor-made	Motorised — remote control, app and home automation	View
AP-610 Recessed Vertical Awning	Vertical awnings	Width up to 500 cm × drop up to 350 cm (per fabric)	Motorised — remote control, app and home automation	View
AP-630 Zip Vertical Awning	Vertical awnings	Width 61–500 cm × drop 125–350 cm (per fabric)	Manual, motorised or solar motor — no wiring needed	View
AP-650 Cable-Guide Vertical Awning	Vertical awnings	Width 71–450 cm × drop 125–450 cm (per fabric)	Motorised — remote control or app; solar motor option	View

Customization

Your AP-610 Recessed Vertical Awning, made your way

Light customization

Dimensions, fabrics, colours and finishes adapted on standard models for a fast project fit.

Built from your drawings

Send your drawings, sketches or technical requirements and we engineer the product to them.

Built from your sample

Provide a physical sample: we replicate its structure, finish and performance.

Made to your requirements

Fully bespoke production built to your specifications, from one-off units to series.
