AP-650 Cable-Guide Vertical Awning
Vertical awnings
One gesture for light, heat and privacy.

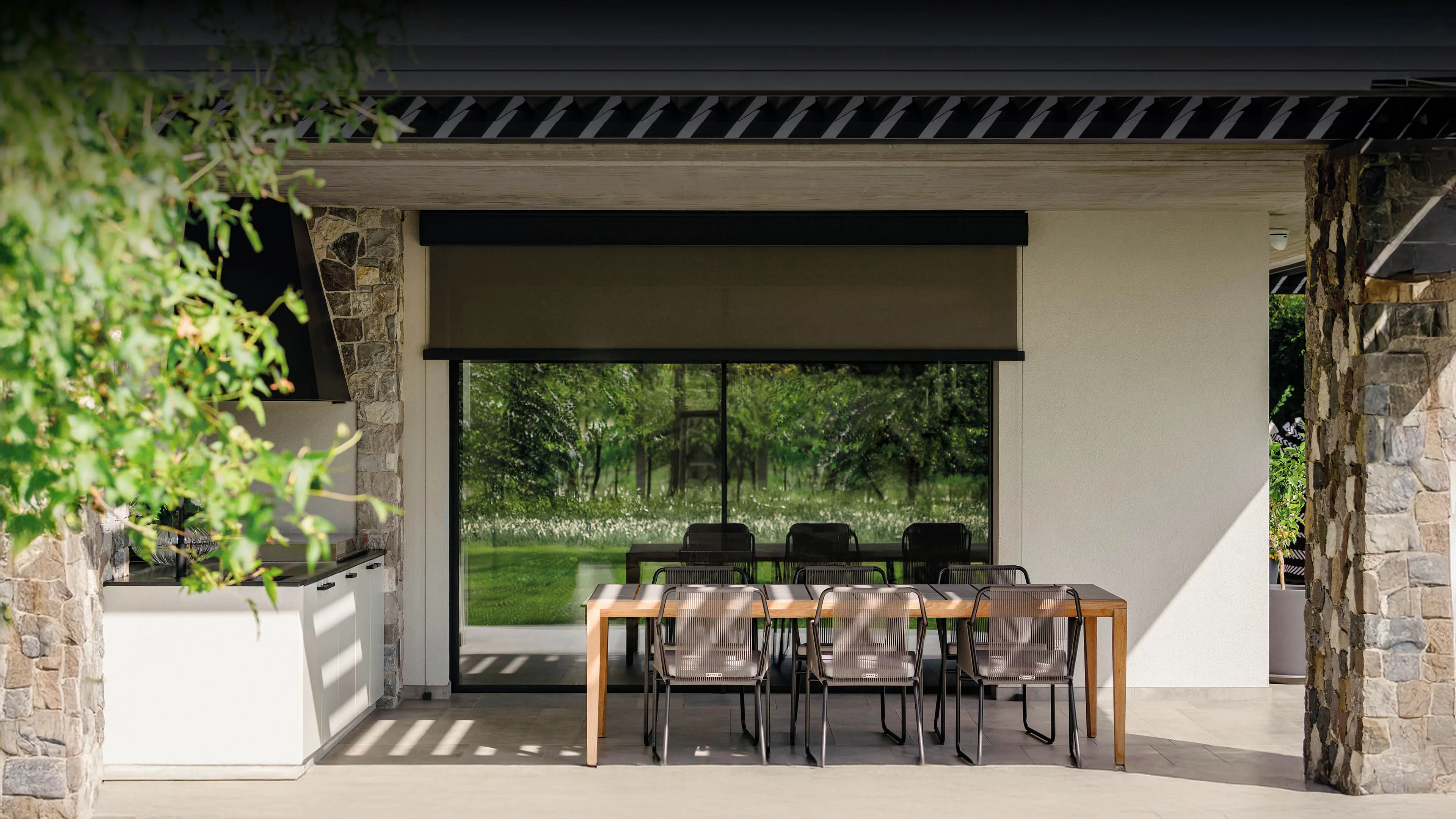

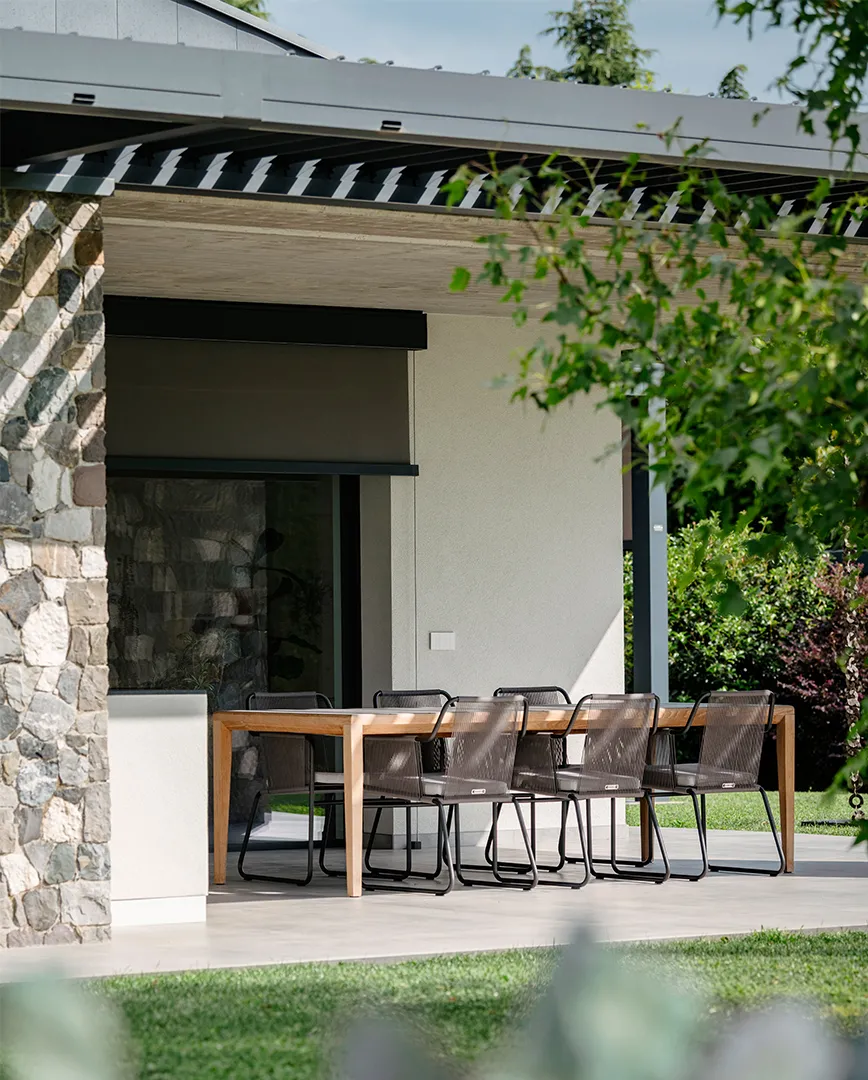

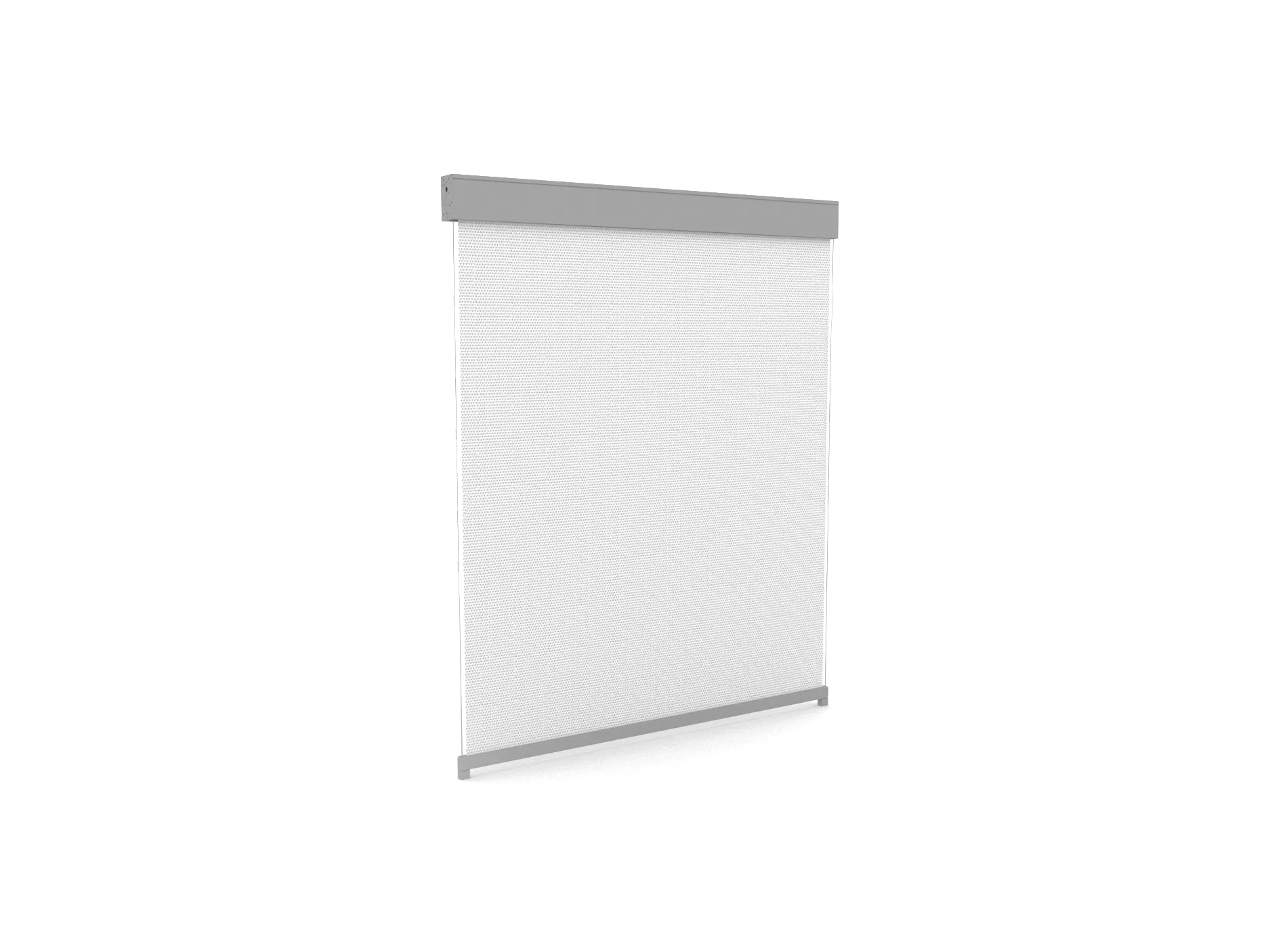

A single touch adjusts the lighting, temperature and privacy of any environment. The AlfaProtech AP-650 pairs a hermetic aluminium box — wall, ceiling or courtyard mounted — with a canvas that glides on 4 mm stainless-steel cables for smooth, fully automated movement and up to 4.5 × 4.5 m of coverage.
Technical details
Every dimension, movement and finish is engineered around your project: section sizes, clearances and load behaviour are defined together with your installer to suit the exact conditions of your site.
Features
- Sealed for harsh exposure — The hermetic aluminium box keeps motor and canvas dry in courtyards and coastal exposure.
- Glide on steel — The canvas runs on 4 mm stainless-steel cables for a smooth, fully automated descent every time.
- Shade at scale — Up to 4.5 × 4.5 m of coverage — wide enough for shopfronts, courtyards and large glazing.
Dimensions
Awning type:
Vertical drop awning on steel cables
Frame material:
Powder-coated aluminium alloy, 2.0 mm wall
Cassette:
Hermetic aluminium cassette, 17.5 × 11 cm
Guide system:
4 mm stainless-steel cables
Mounting:
Wall, ceiling or inner courtyard
Size range:
Width 71–450 cm × drop 125–450 cm (per fabric)
Operation:
Motorised — remote control or app; solar motor option
LED lighting:
Optional LED line in the cassette (from 120 cm width)
Fabric options:
Technical filtering (up to 95% UV shield), blockout or waterproof
Certification:
CE certified
Complete your pergola
Lighting, side closures and automation extend the seasons of your outdoor space — accessories designed to work as one system with the structure above them.
Documentation
Catalogues, technical sheets and maintenance manuals for every collection, ready to download or request from our team.
Compare the models
Unsure which solution fits your space? Put the models side by side and read the technical characteristics at a glance.
Cable-guided
Advantages
Thermal comfort
Adjustable shading keeps light, ventilation and temperature under control using nothing but sun and wind.
Tailor-made design
Dimensions, configurations, colours and options are defined project by project — no two installations are alike.
Built to last
Powder-coated aluminium structures engineered for years outdoors with minimal maintenance.
Sustainable living
Passive climate control lowers energy use and extends the living season of your outdoor space.
| Model | Category | Max width | Control | |
|---|---|---|---|---|
| AP-510 Cassette Arm Awning | Arm awnings | Width 175–595 cm × projection 150–350 cm, tailor-made | Motorised — remote control, app and home automation | View |
| AP-530 Arm Awning with Motorised Valance | Arm awnings | Width 200–700 cm × projection 150–400 cm, tailor-made | Motorised — remote control, app and home automation | View |
| AP-550 Essential Arm Awning | Arm awnings | Width 223–590 cm × projection 140–340 cm, tailor-made | Motorised — remote control, app and home automation | View |
| AP-610 Recessed Vertical Awning | Vertical awnings | Width up to 500 cm × drop up to 350 cm (per fabric) | Motorised — remote control, app and home automation | View |
| AP-630 Zip Vertical Awning | Vertical awnings | Width 61–500 cm × drop 125–350 cm (per fabric) | Manual, motorised or solar motor — no wiring needed | View |
| AP-650 Cable-Guide Vertical Awning | Vertical awnings | Width 71–450 cm × drop 125–450 cm (per fabric) | Motorised — remote control or app; solar motor option | View |
Customization
Your AP-650 Cable-Guide Vertical Awning, made your way
Light customization
Dimensions, fabrics, colours and finishes adapted on standard models for a fast project fit.
Built from your drawings
Send your drawings, sketches or technical requirements and we engineer the product to them.
Built from your sample
Provide a physical sample: we replicate its structure, finish and performance.
Made to your requirements
Fully bespoke production built to your specifications, from one-off units to series.
